Stainless Steel Butt Hinge, 40x30mm, 304-Grade Stainless Steel Hinge

Stainless Steel Butt Hinge, 40x30mm, 304-Grade Stainless Steel Hinge

SKU: SKU:SM-0453

Regular price £3.18
Regular price Sale price £3.18
Sale Sold out
STOCK: 19

Unit price: £3.18

Product Description

Stainless steel butt hinges, made from 304-grade stainless steel.  Use these stainless hinges for doors, hatches and cabinets.  Use for exterior jobs where a regular steel hinge does not have the corrosion resistance needed.

These stainless steel butt hinges have 4.3mm diameter countersunk fixing holes.  Attach these hinges with M5 set-screws (if using 'nut and bolt') or 4.8mm self-tapping screws

These butt hinges are 1.5mm thick, giving a robust performance without being too intrusive.  The 304-grade stainless is less suited to marine exterior use than some of our many 316-grade hinges.  That said, they are perfectly well-suited to boat interior use such as locker doors.

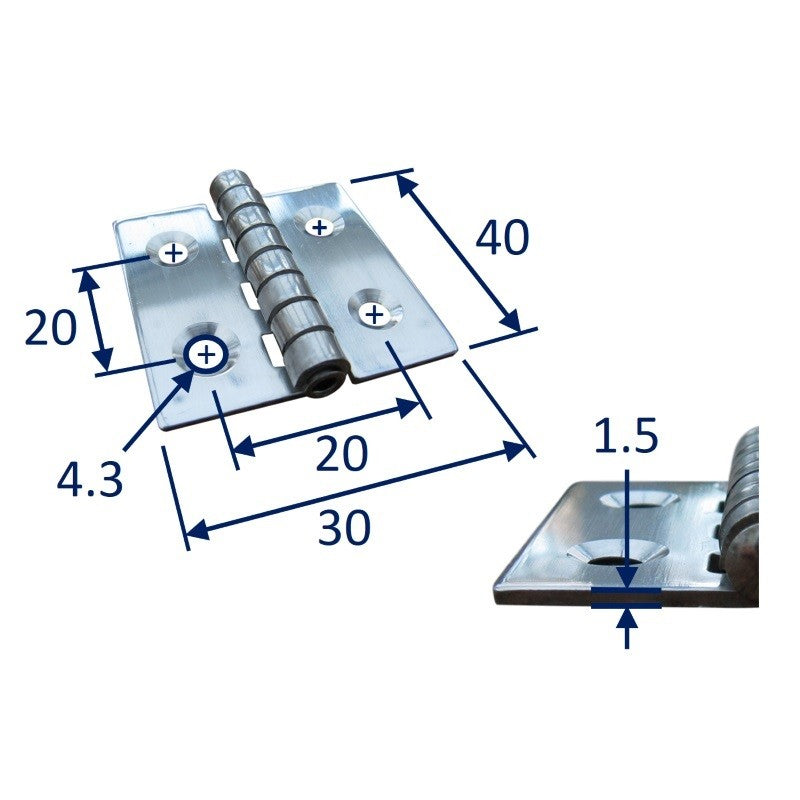

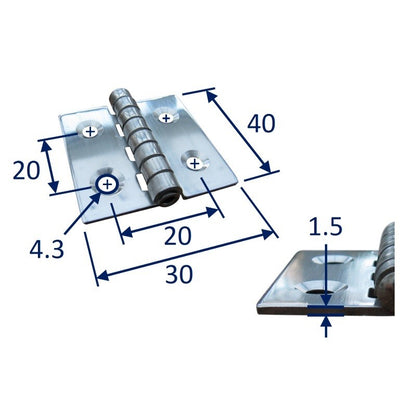

See pictures for detailed dimensions of these hinges.

  • Butt hinge
  • 304-grade stainless steel
  • 40mm height
  • 30mm width
  • 1.5mm thickness
  • Use M4 bolts / set-screws (nut and bolt fixing)
  • Use 3.5mm self-tappers for screwing into wood

View full details
