Stainless Steel Wide Shackles, In 316-Grade Stainless Steel For Boats & Marine

Stainless Steel Wide Shackles, In 316-Grade Stainless Steel For Boats & Marine

SKU: SKU:SM-0450

PRICES FROM
Regular price £2.92
Regular price Sale price £2.92
Sale Sold out
STOCK: 25

Unit price: £2.92

Product Description

Stainless steel wide shackles made in 316-grade stainless for best performance in marine environments.  These wide shackles have some special uses around the boat, where the extra wide jaw opening is a benefit.

Choose from our stainless steel wide shackles ranging from M5 to M10 in size.  The size refers to the diameter of the shackle pin.  For example and M6 shackle has a 6mm diameter pin with an M6 thread.

You can tigthen or loosen the shacke pin with pliers or our handy shackle key, which you can keep on your keyring.

Choose our stainless steel wide shackles where the jaw opening of a standard D-shackle will not fit.  One such example is for attaching to mooring buoys.

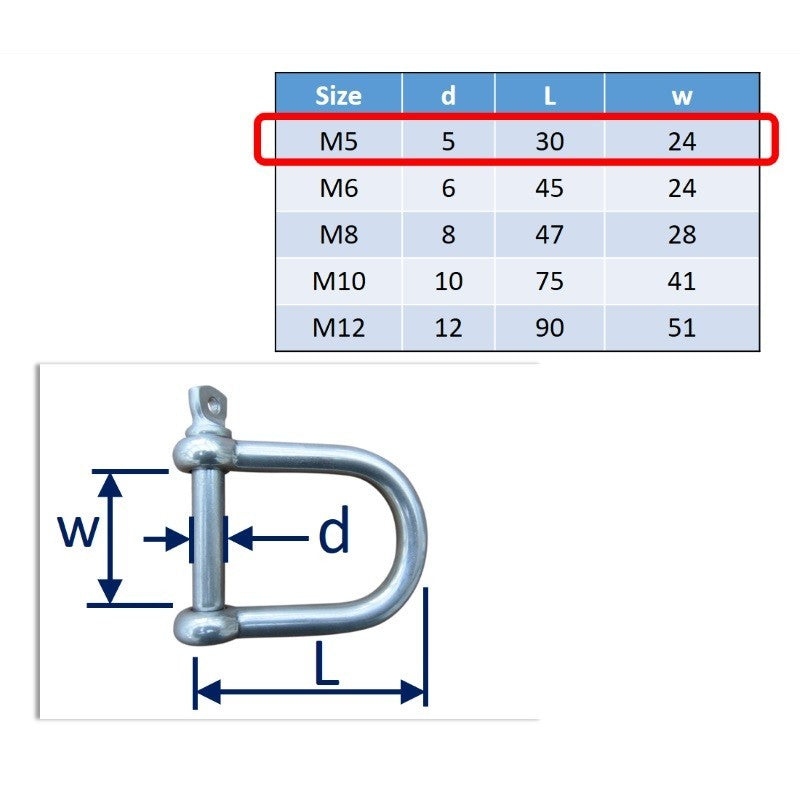

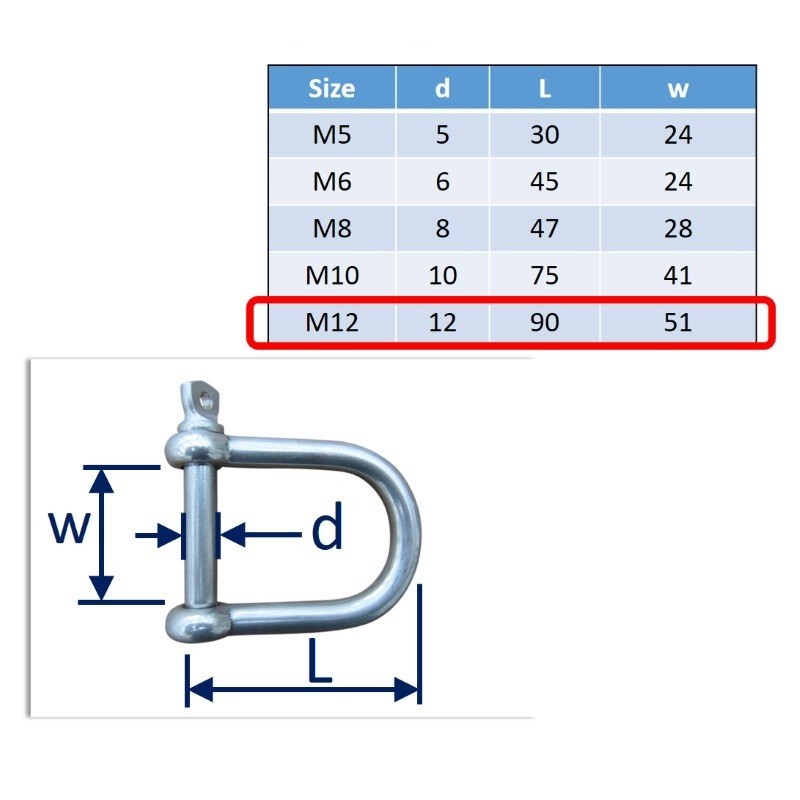

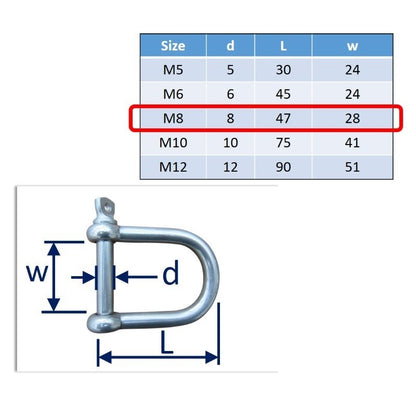

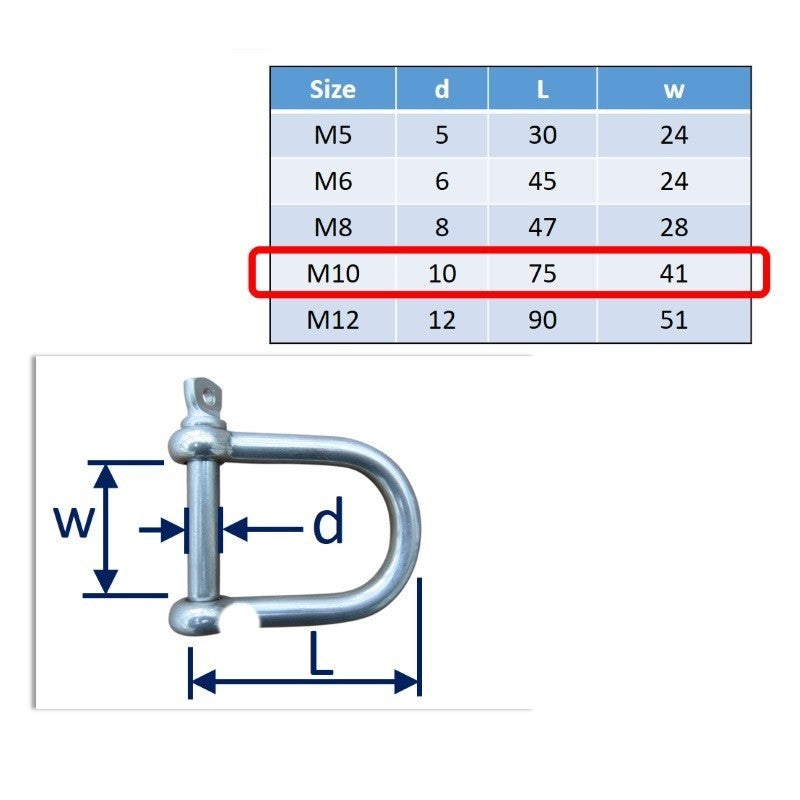

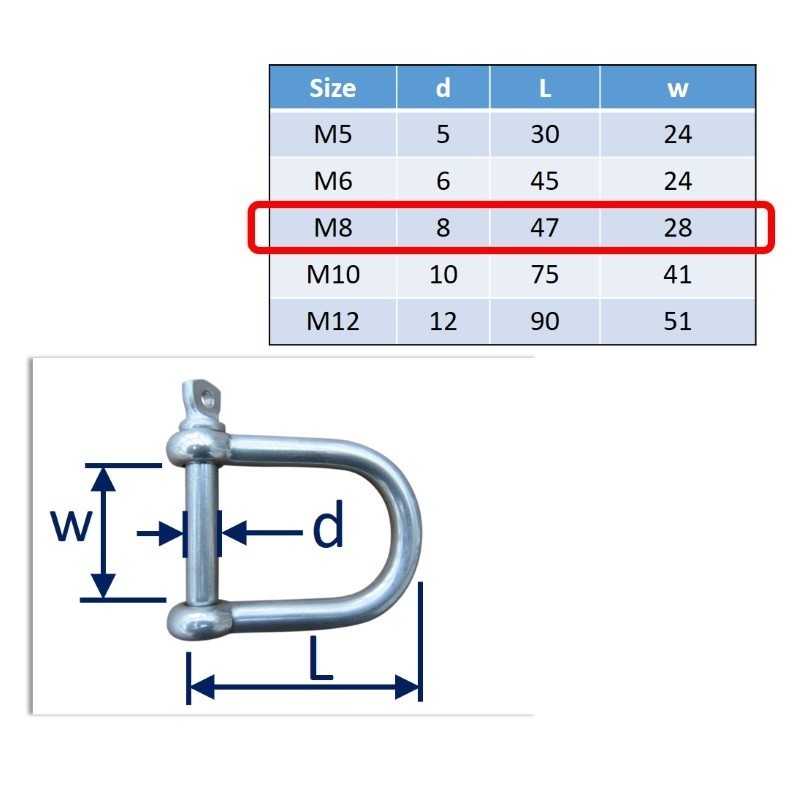

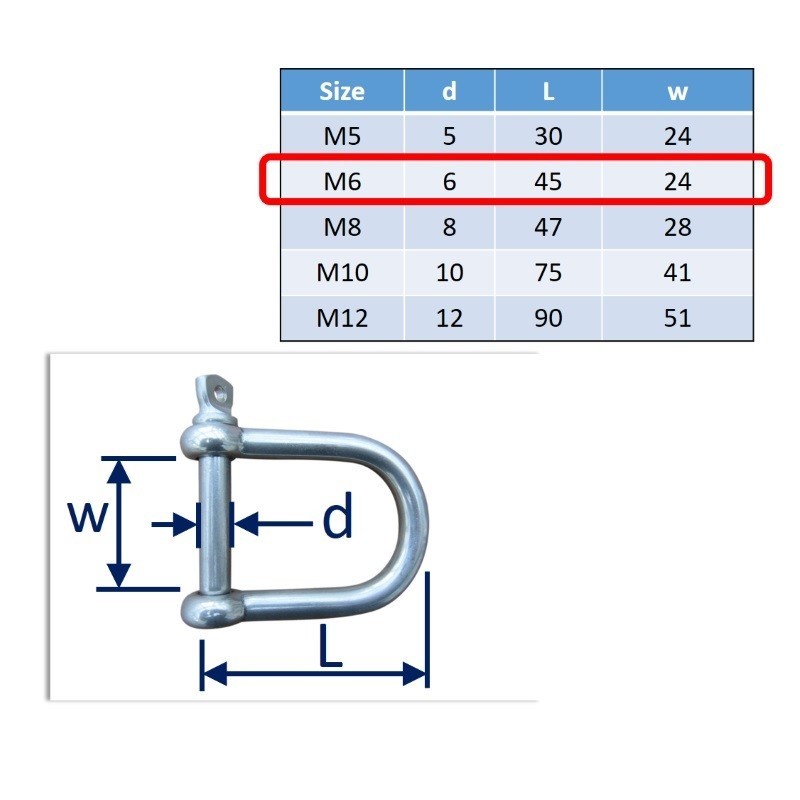

Choose the size of wide shackle for your particular need, please check our sizing table which gives the jaw opening and also the length dimension of the shackle.  For other special purposes we have the long-shackletwisted-shackle or bow shackle.

The superior corrosion resistance of these 316 grade wide shackles make them a great choice for sailing, motor boating and other water-sports applications.

  • Wide shackles
  • 316 stainless steel (marine grade)
  • Range of metric sizes
  • Long lasting rust-free performance

Stainless Steel Wide Shackle Strength Information

The manufacutrer's stated breaking loads for each size of wide shackle are shown below.  These are for ideal straight-line loading.

  • M5   size:  breaking load 750kg
  • M6   size:  breaking load 1350kg
  • M8   size:  breaking load 2500kg
  • M10 size:  breaking load 3350kg
