Stainless Steel Tube Hinge With Concave Shaped Base To Fit 25mm Tube & Removable Pin, Used For Spray Hoods & Canopies

Stainless Steel Tube Hinge With Concave Shaped Base To Fit 25mm Tube & Removable Pin, Used For Spray Hoods & Canopies

SKU: SKU:SM-1584

Regular price £13.57 Regular price £10.85
Regular price £13.57 Sale price £10.85
Sale Sold out
STOCK: 12

Unit price: £10.85

Product Description

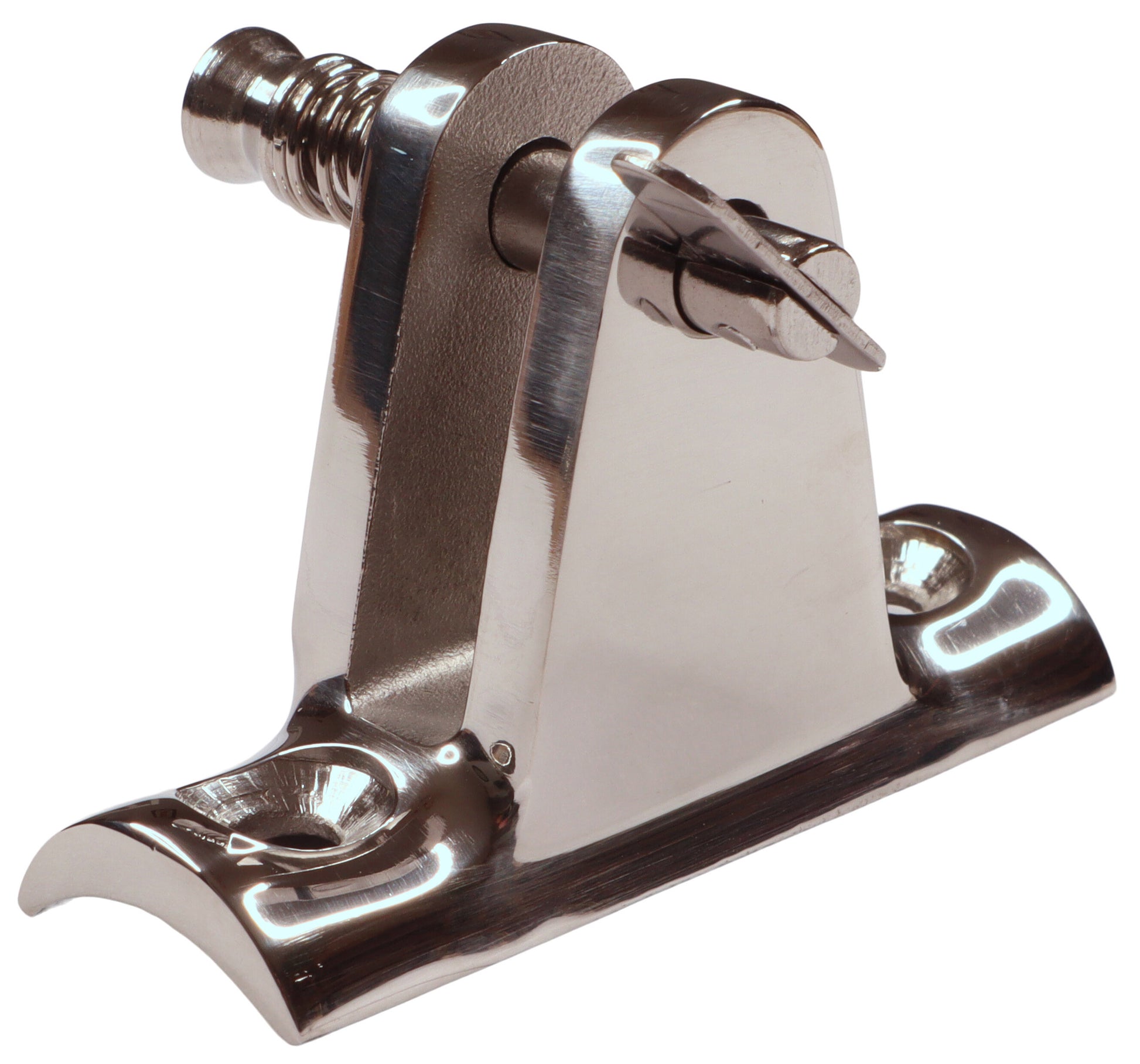

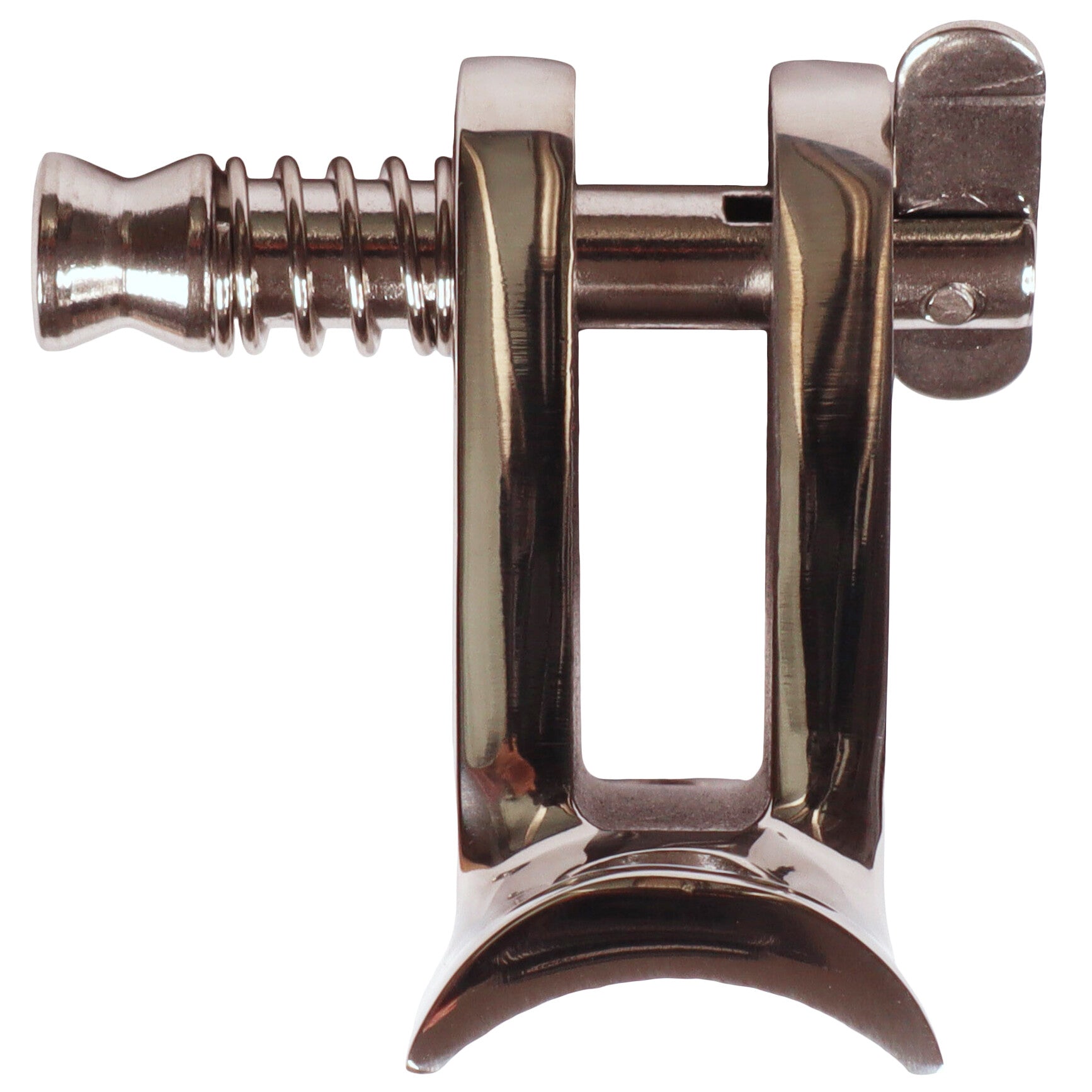

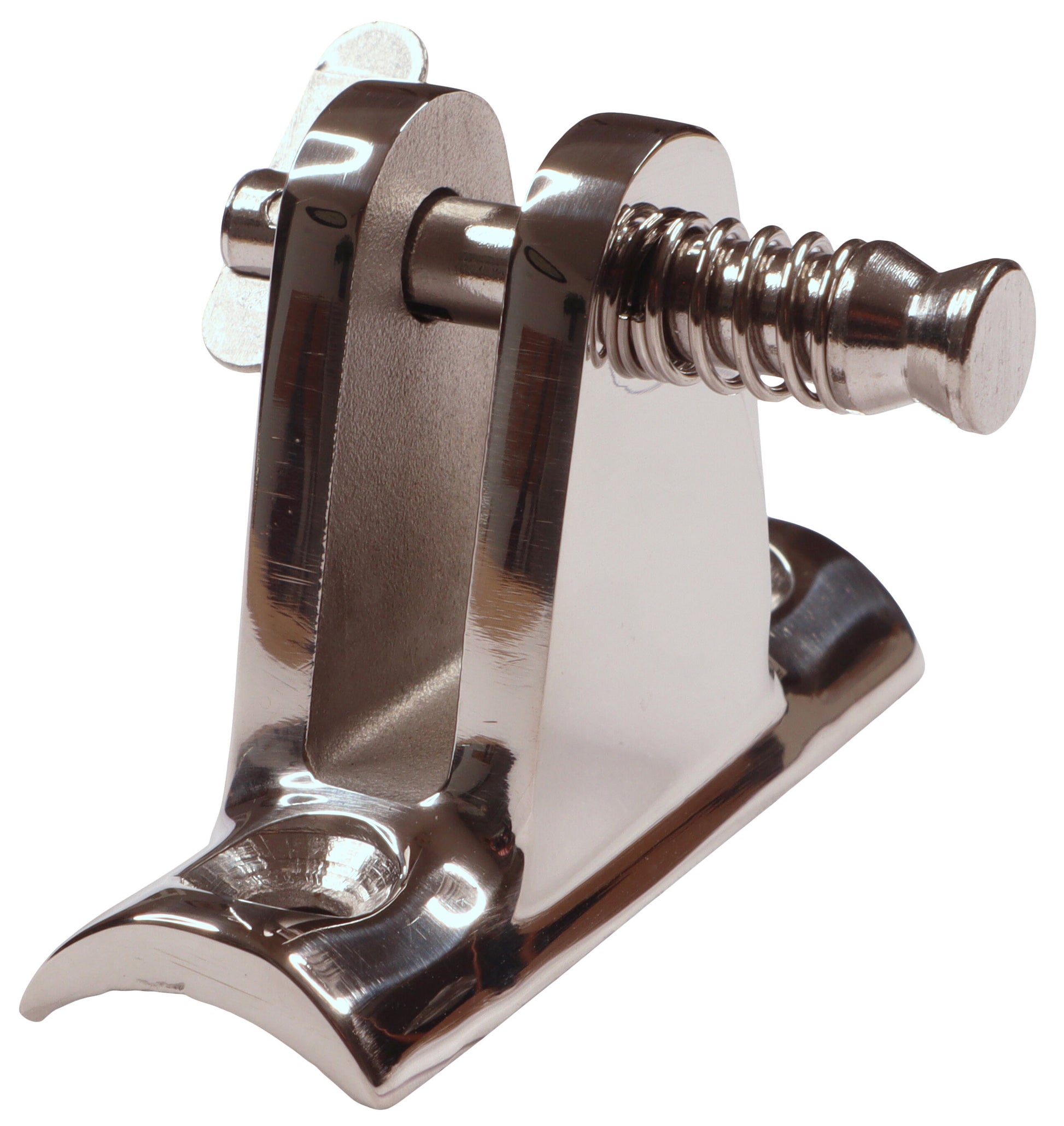

This tube hinge comes with a concave/arc shaped base and a removable pin. Most often used for spray hoods and canopies.

This hinge has a concave base optimised to 25mm stainless steel tube.  It can also be used on 22mm tube or 30mm diameter tube if needed, and acts as a hinge point for frames for boat hoods, boat canopies etc.

Made in marine grade stainless steel this fitting will stand up to a harsh marine environment retaining its appearance. The pin can easily be removed without the need for any tools.

Attachment to the tube can be with a thru bolt and nut (M5) or using a pop-rivet (size 4.8mm)

  • 316 Marine grade stainless
  • Concave base

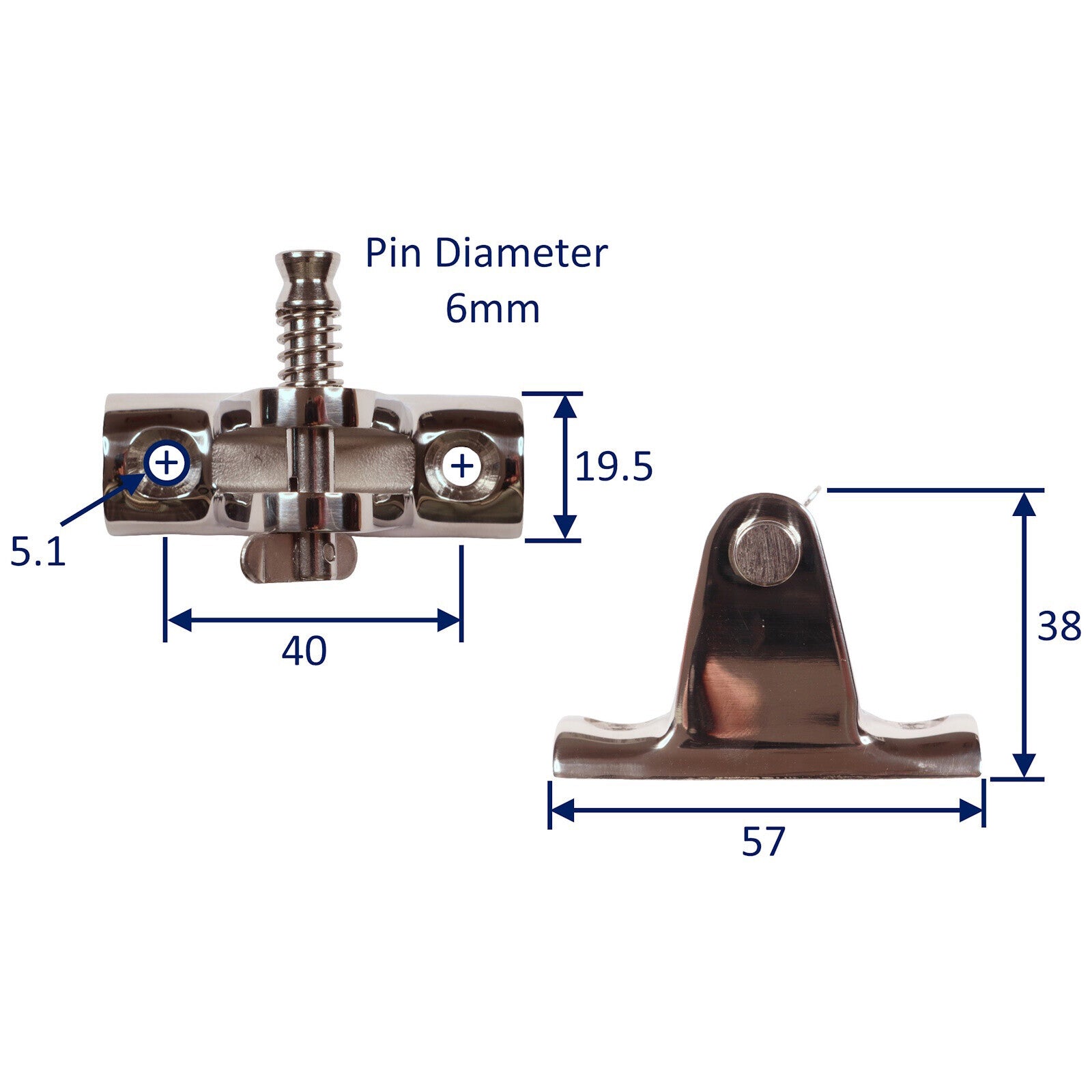

  • Removable drop-nose pin (6mm diameter)
  • 90-degree angle
  • Polished finish
  • Fixing size M5 or 4.8mm rivets
