316 Stainless Steel Rivnuts (Countersunk), Metric Threaded Nuts For Permanent Riveting in Place

Product Description

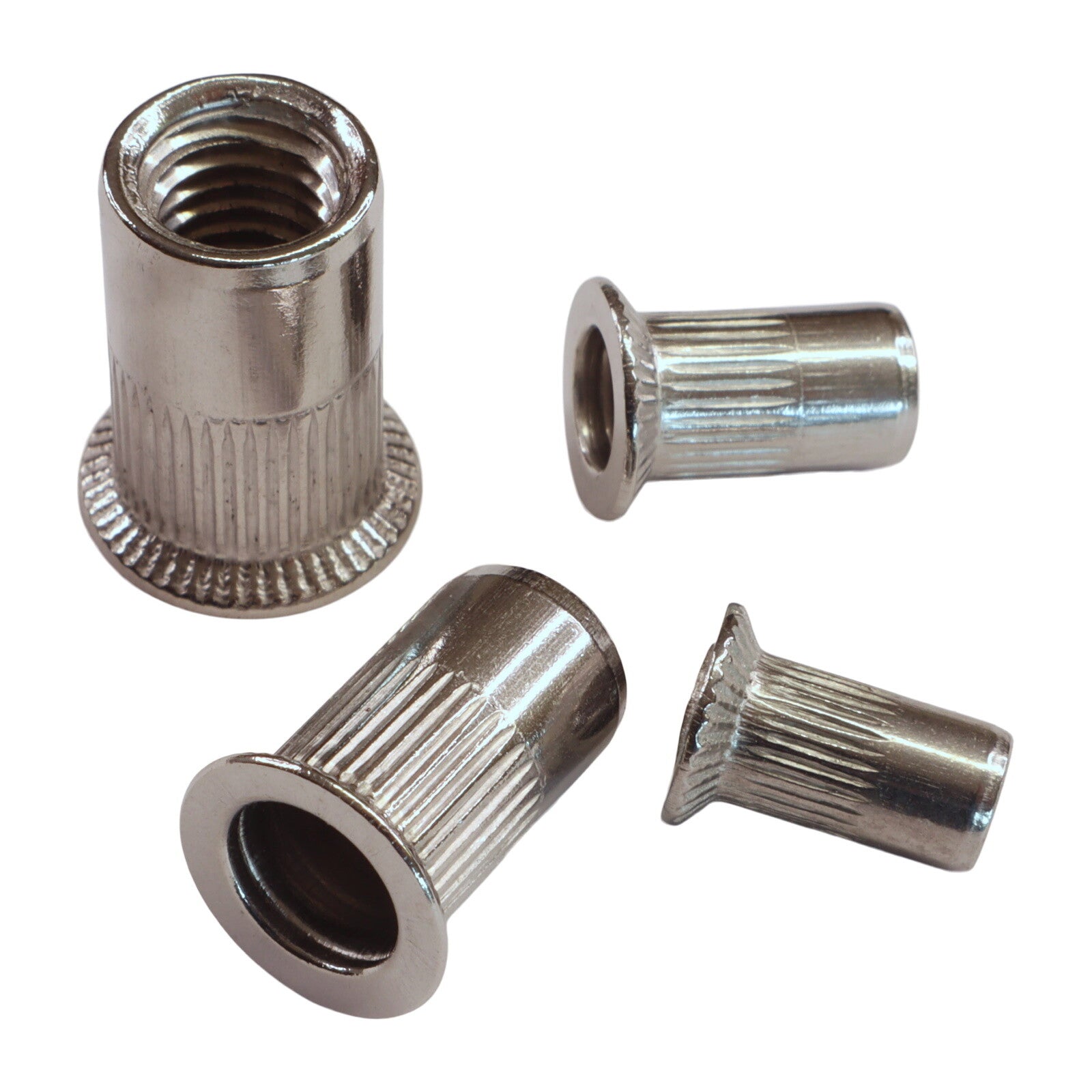

Stainless steel rivnuts (rivet-nuts) are a way to provide a permanently fixed nut, and are especially useful where you do not have access to the back side of a tube or bulkhead – the rivnut can be fitted entirely from the outside, using a special rivet setting tool.  We have two styles of stainless steel rivnuts, these ones have a countersunk head, the other ones that we have are made with a flanged head.

Our rivnuts have a standard metric thread (a range of rivnut sizes are available), and they are made from solid 316-grade stainless steel so suitable for marine and salt-water exposure.  Rivnuts are installed using a rivnut application tool, there are manual versions of the rivnut setting tool available which are not too costly, there are also adaptors for electric drill/drivers for installing rivnuts.

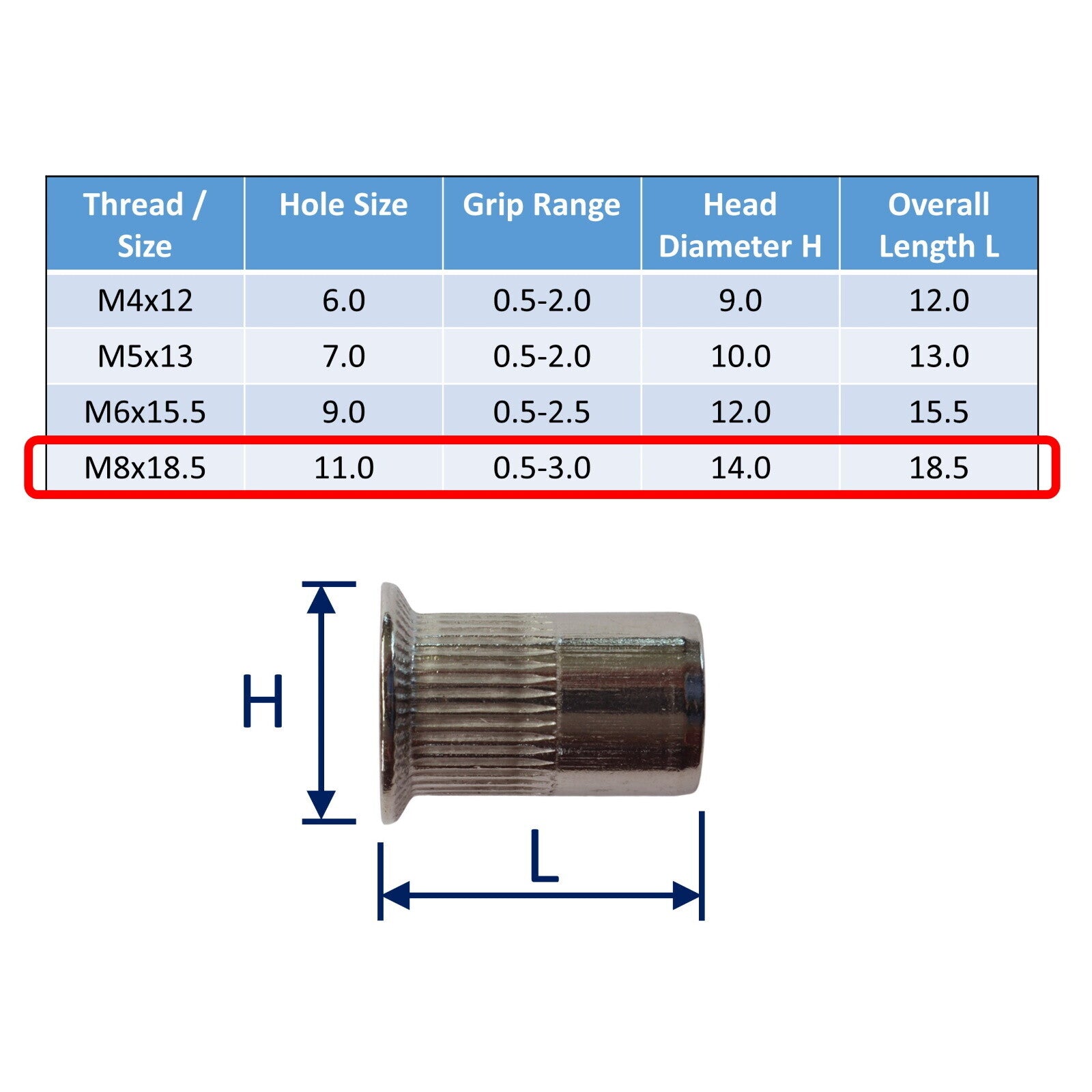

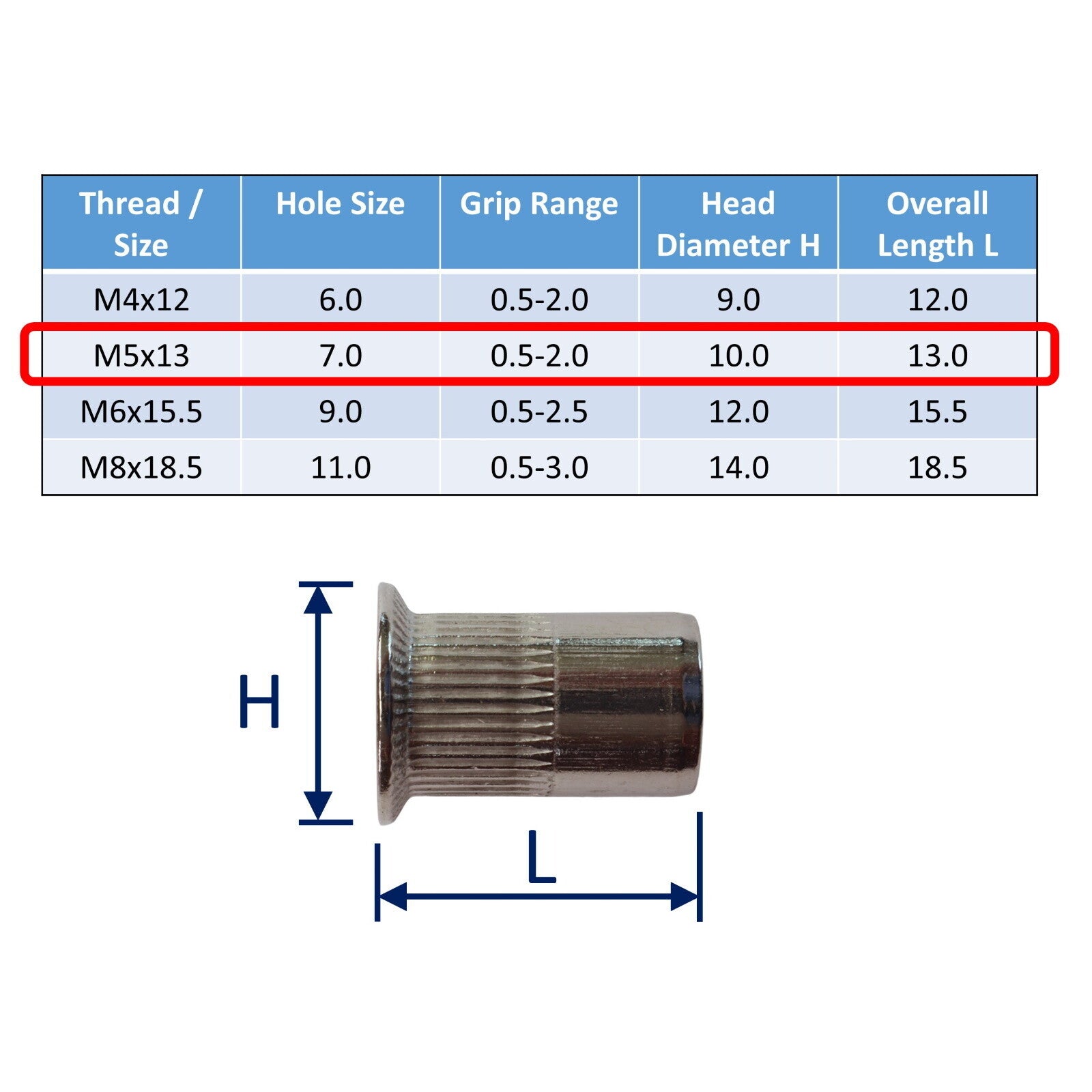

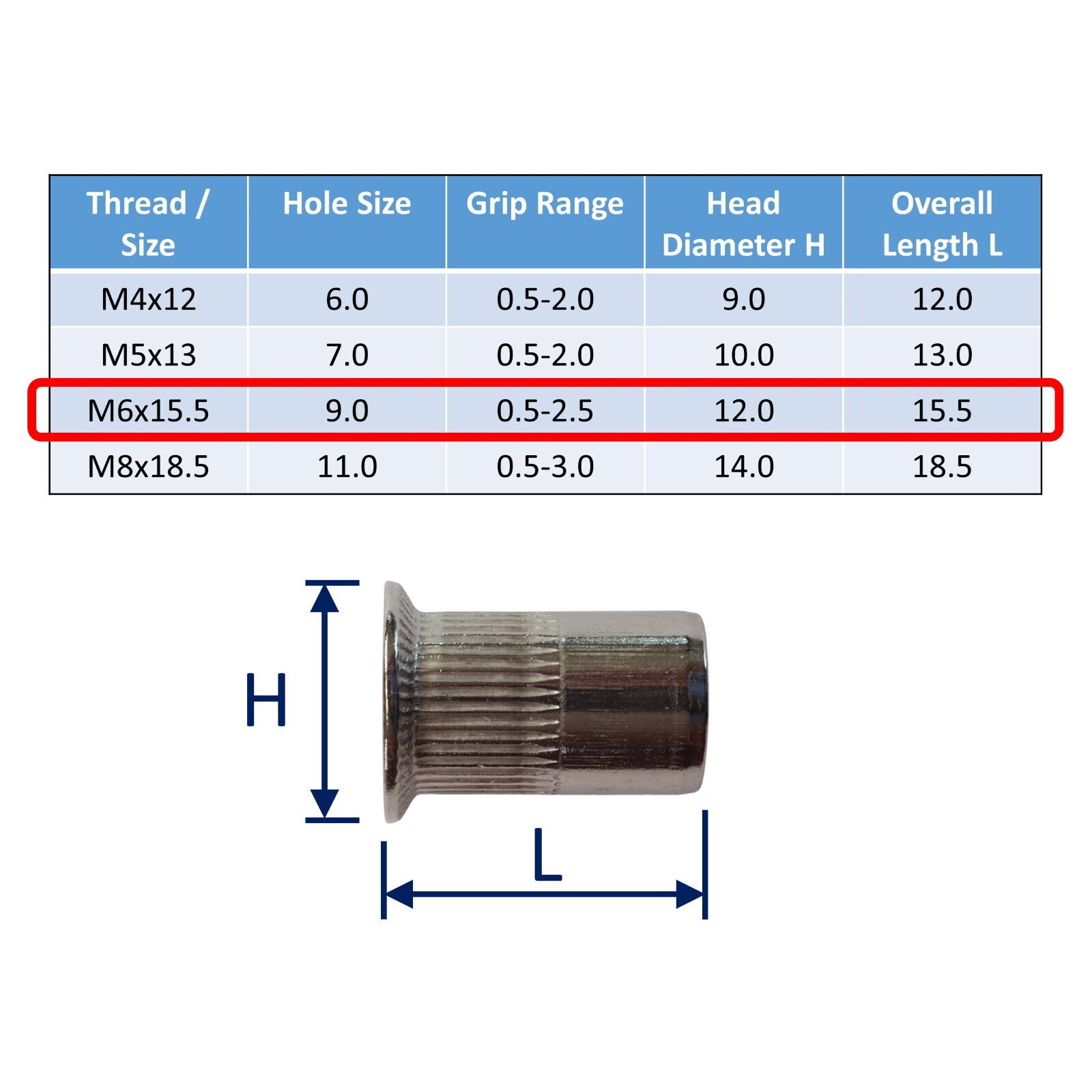

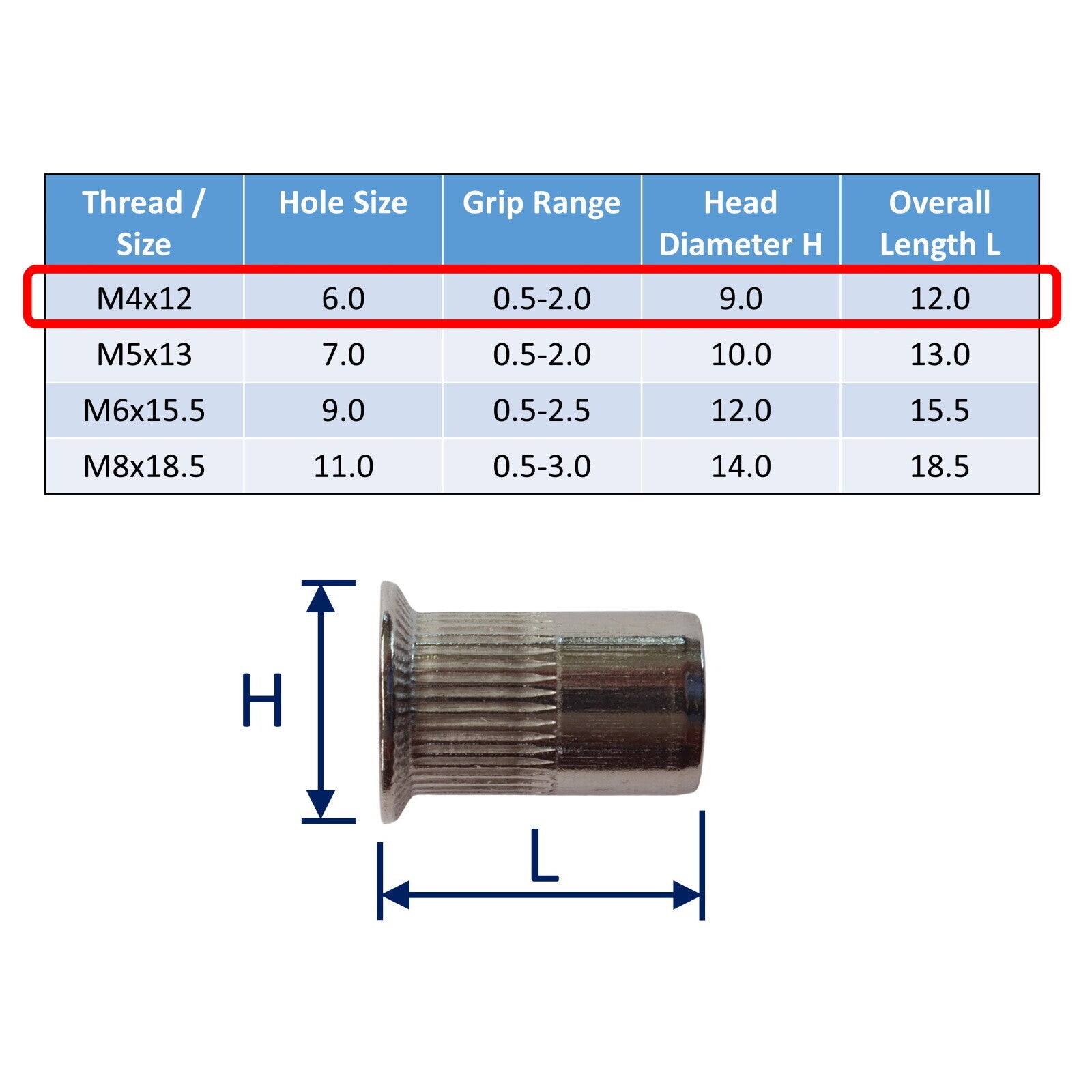

Each rivnut, depending on its size, has a recommended installation hole size, and grip range (the thickness of material that it is best suited to).  If you want to install a rivnut into a thickness of material which is greater than the recommended grip range, you might want to locally thin (by counter-sinking or similar) to achieve the recommended grip thickness.

• 316 Stainless Steel
• Standard Metric Thread
• For Permanent Installation Of Nut (riveted in place)
• Countersunk head
