Stainless Steel Butt Hinge - 316 Grade Stainless Door Hinge With Polished Finish 50x50mm

Product Description

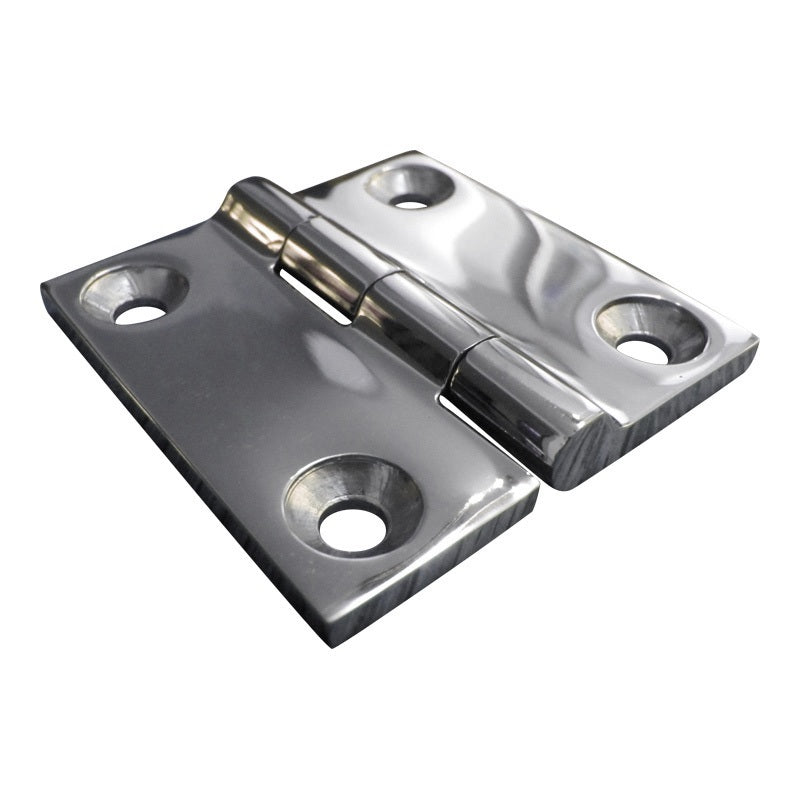

Stainless steel butt hinges, made from 316-grade solid stainless steel with a beautiful polished finish.  Use these stainless hinges for doors, hatches and lockers around the boat.

These stainless steel hinges have a lovely polished finish making them ideal for both interior and exterior use.  These marine stainless hinges have a solid quality feel and are suitable for cabin doors, lockers, tables and cabinets. Also, their corrosion resistance makes them ideal for exterior cockpit lockers or exterior tables.

These marine hinges have 5.2mm diameter countersunk fixing holes.  Attach these hinges with M5 set-screws (if using 'nut and bolt') or 4.8mm self-tapping screws.  For a 'classic' look you might want to use our raised-slot-countersunk set screws.

The geometry of these stainless steel butt hinges is symmetric, so both hinge leaves are the same length.  Alternatively, we have other hinges with a non-symmetric geometry.

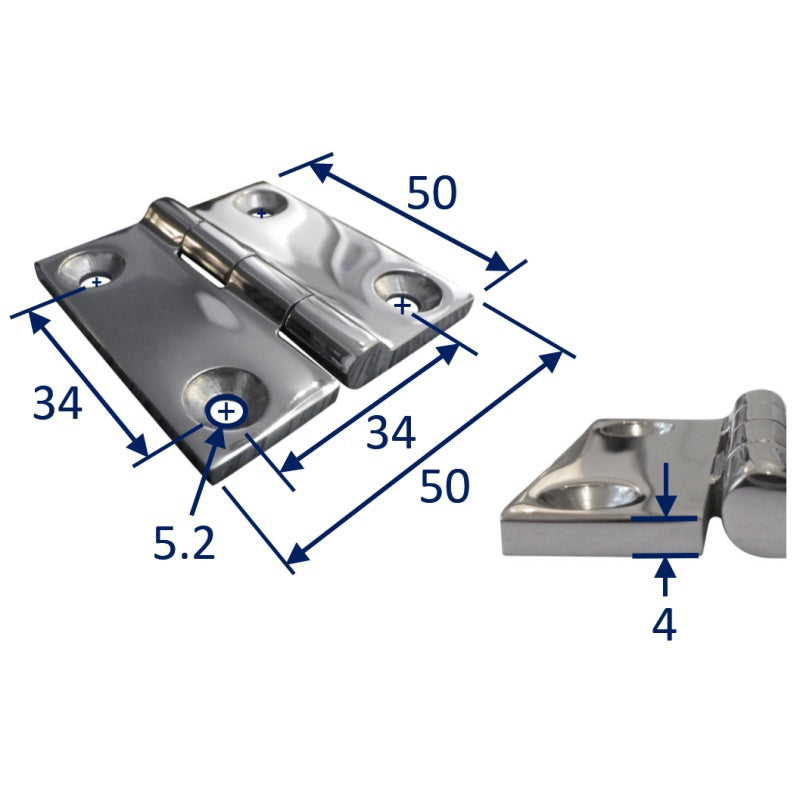

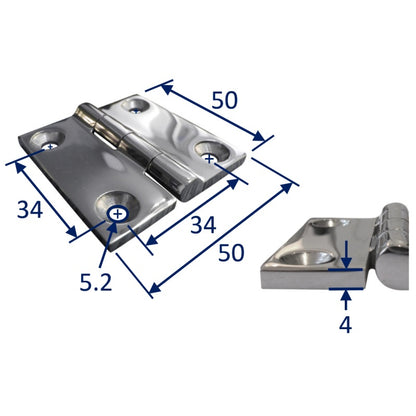

See pictures for detailed dimensions of these hinges.

• Polished door hinge
• 316-grade stainless steel
• 50mm overall length
• 50mm width
• 4mm thickness
• Use M5 bolts / set-screws (nut and bolt fixing)
• Use 4.8mm self-tappers for screwing into wood
• Sturdy construction
