Stainless Steel Offset Hinge - 316 Grade Stainless Door Hinge With Polished Finish 56x38mm

Product Description

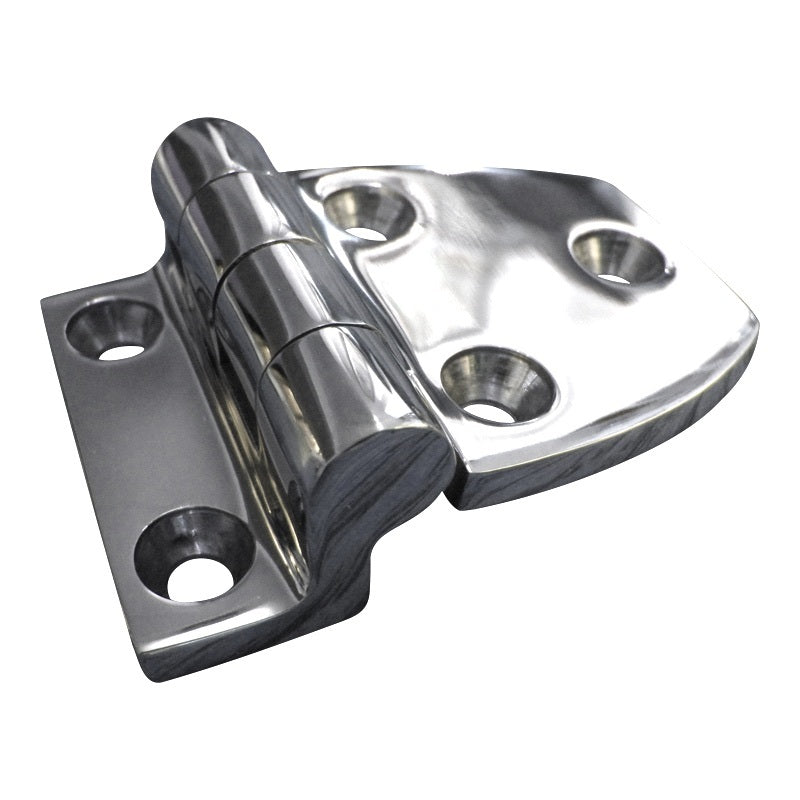

Stainless steel offset hinges, made from 316-grade solid stainless steel with a beautiful polished finish.  Use these stainless hinges for doors, hatches and lockers around the boat.

Offset hinges are useful in situations where normal (aligned) hinges do not quite fit.  These hinges have an offset of 8mm.  Example use cases are hatch covers, cabin doors and locker doors.

These stainless steel offset hinges have a lovely polished finish making them ideal for both interior and exterior use.  These marine stainless hinges have a solid quality feel and are suitable for cabin doors, lockers, tables and cabinets. Also, their corrosion resistance makes them ideal for exterior cockpit lockers or exterior tables.

These marine offset hinges have 5.2mm diameter countersunk fixing holes.  Attach these hinges with M5 set-screws (if using 'nut and bolt') or 4.8mm self-tapping screws.  For a 'classic' look you might want to use our raised-slot-countersunk set screws.

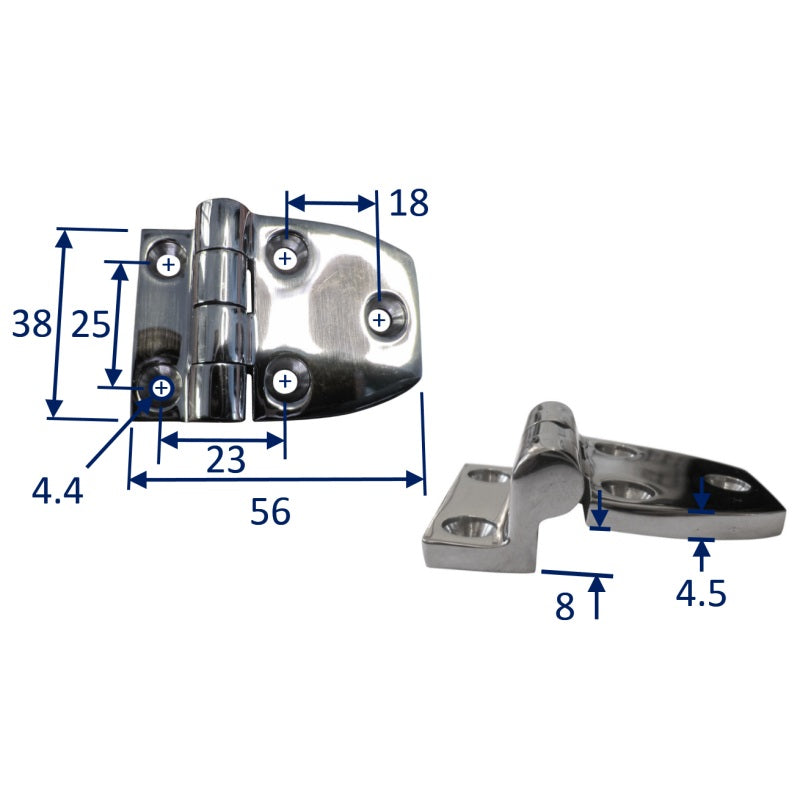

See pictures for detailed dimensions of these hinges.

• Polished offset hinge
• 316-grade stainless steel
• Offset 8mm
• 56mm overall length
• 38mm width
• 4mm thickness
• Use M5 bolts / set-screws (nut and bolt fixing)
• Use 4.8mm self-tappers for screwing into wood
• Sturdy construction
