Stainless Steel T-Fitting - Hinged In 2 Parts - For Joining Our 316 Stainless Steel Tubing, Choice Of Sizes

Product Description

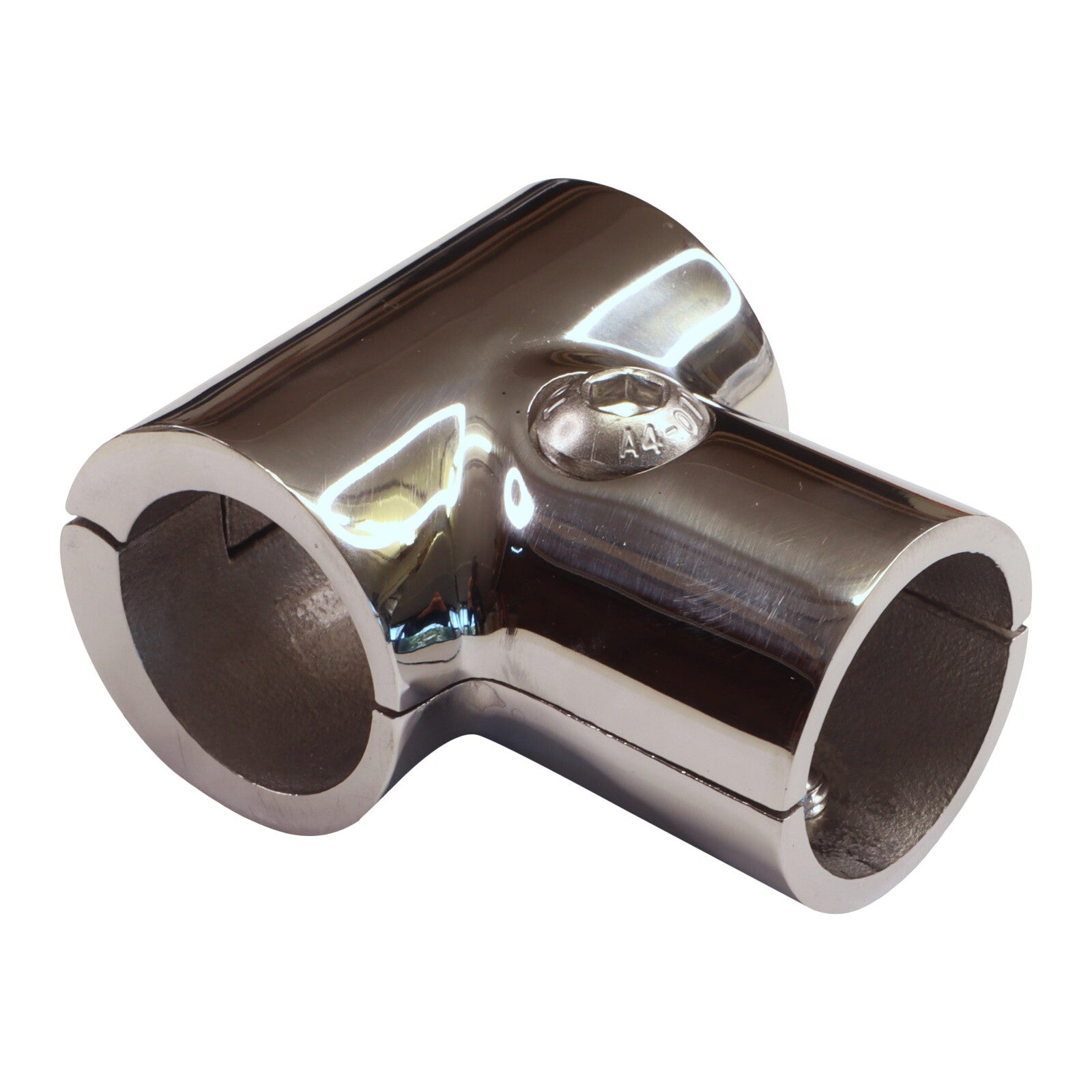

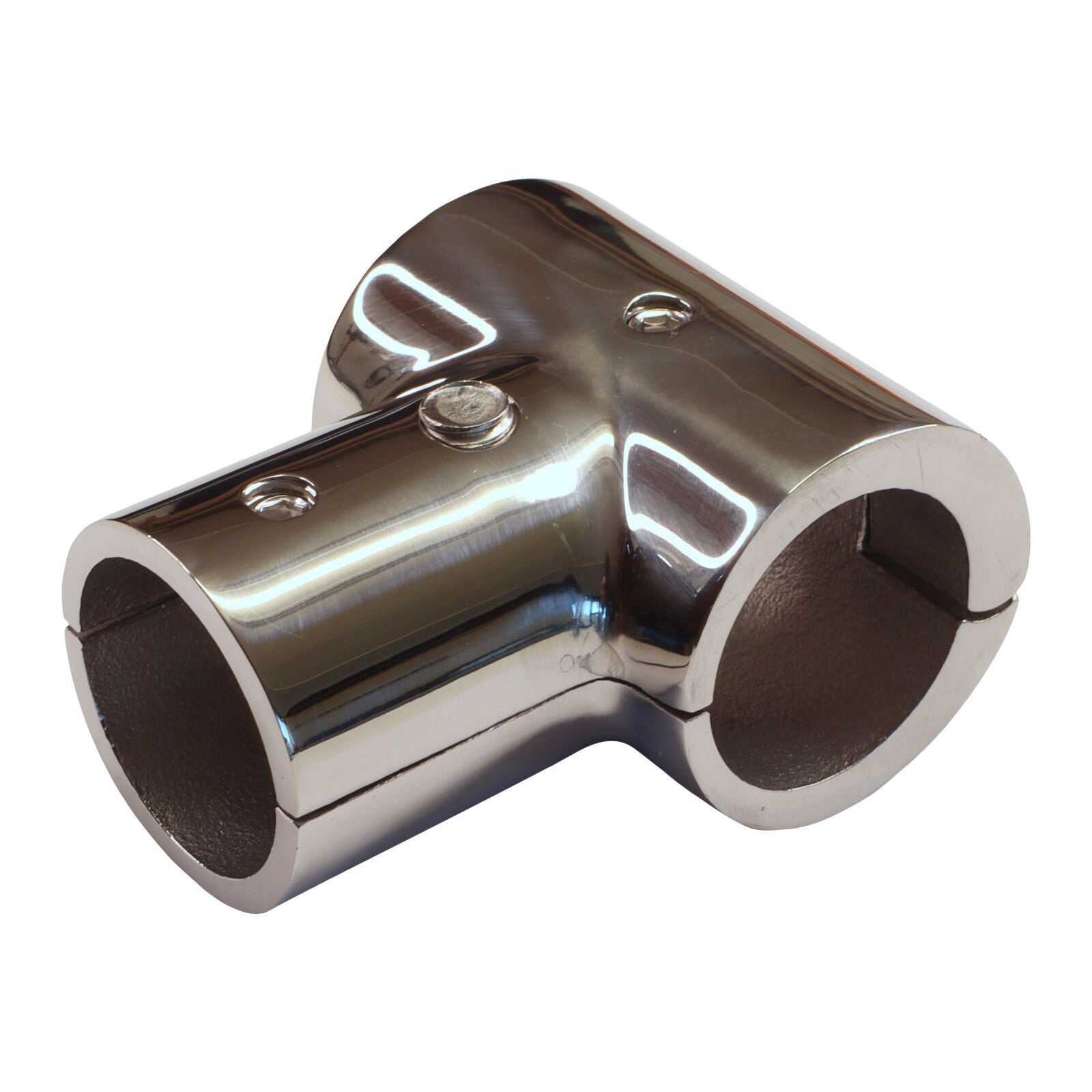

Stainless steel T-fitting, hinged in 2 parts for joining stainless steel tubing.  The T-fitting comes with an M8 clamping bolt and stainless steel grub-screws to secure the tubes in place.  Construct bespoke stainless steel frames for biminis, canopy frames, hood frames etc. using our stainless T-joint fittings along with our many other types of tube fitting.

Use these stainless steel t-joints, hinged in 2 parts, to join stainless steel tubes at a 90-degree angle. The hinged 2-part construction allows these t-fittings to be clamped over an existing rail, to join a length of tube at 90 degrees.  Alternatively, use our one-part 90-degree T-fitting, to slide over the end of a tube where access permits.

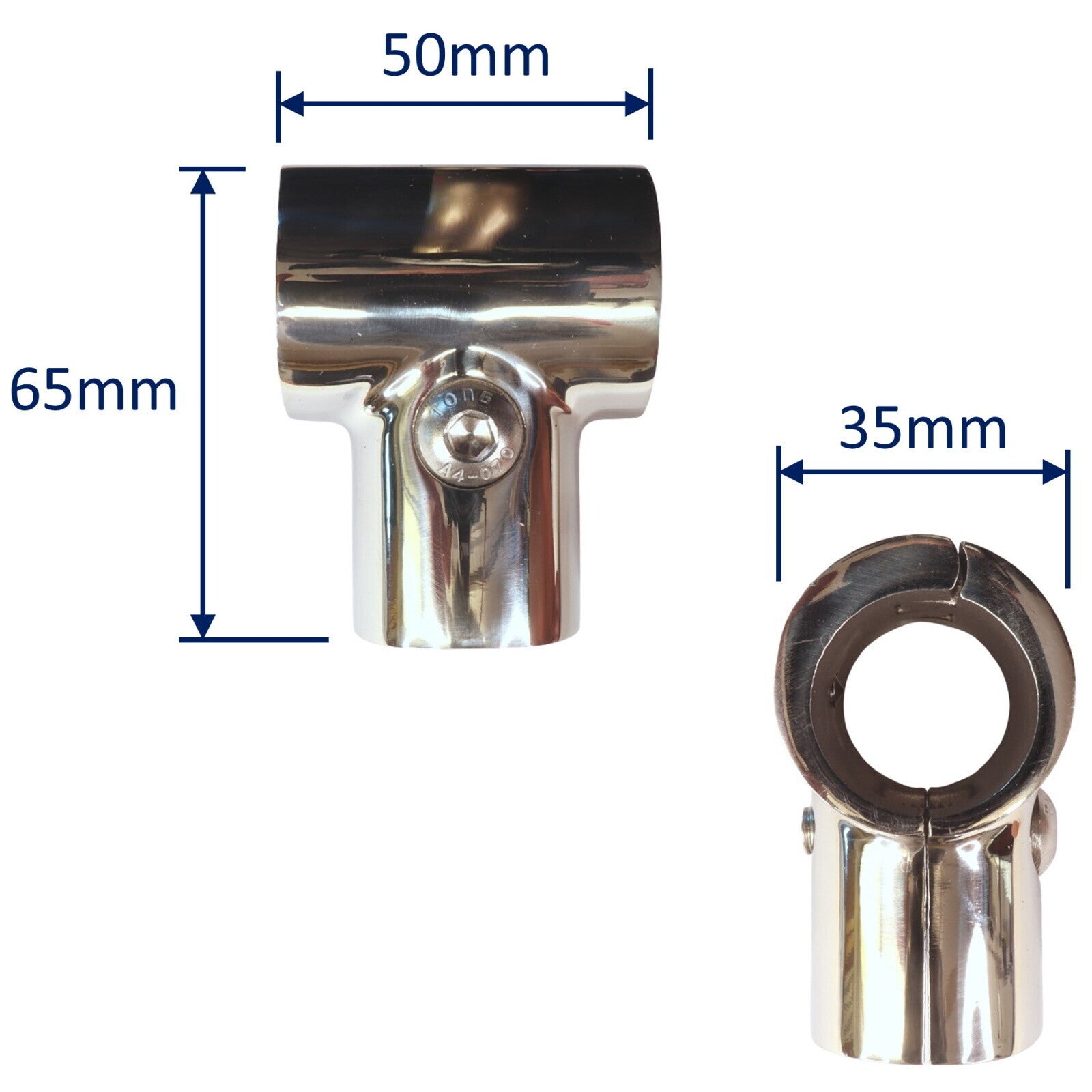

Choose a T-joint from the available sizes to suit 22mm or 25mm tubing.  Note that the 25mm version is suitable for 1" (25.4mm) tubing as well.  The tubing size refers to the outside diameter of the tube to be used.

If you can't find a way to achieve what you want with our off-the-shelf tube and fittings, we may be able to help with a bespoke solution - do get in touch.

• Polished finish

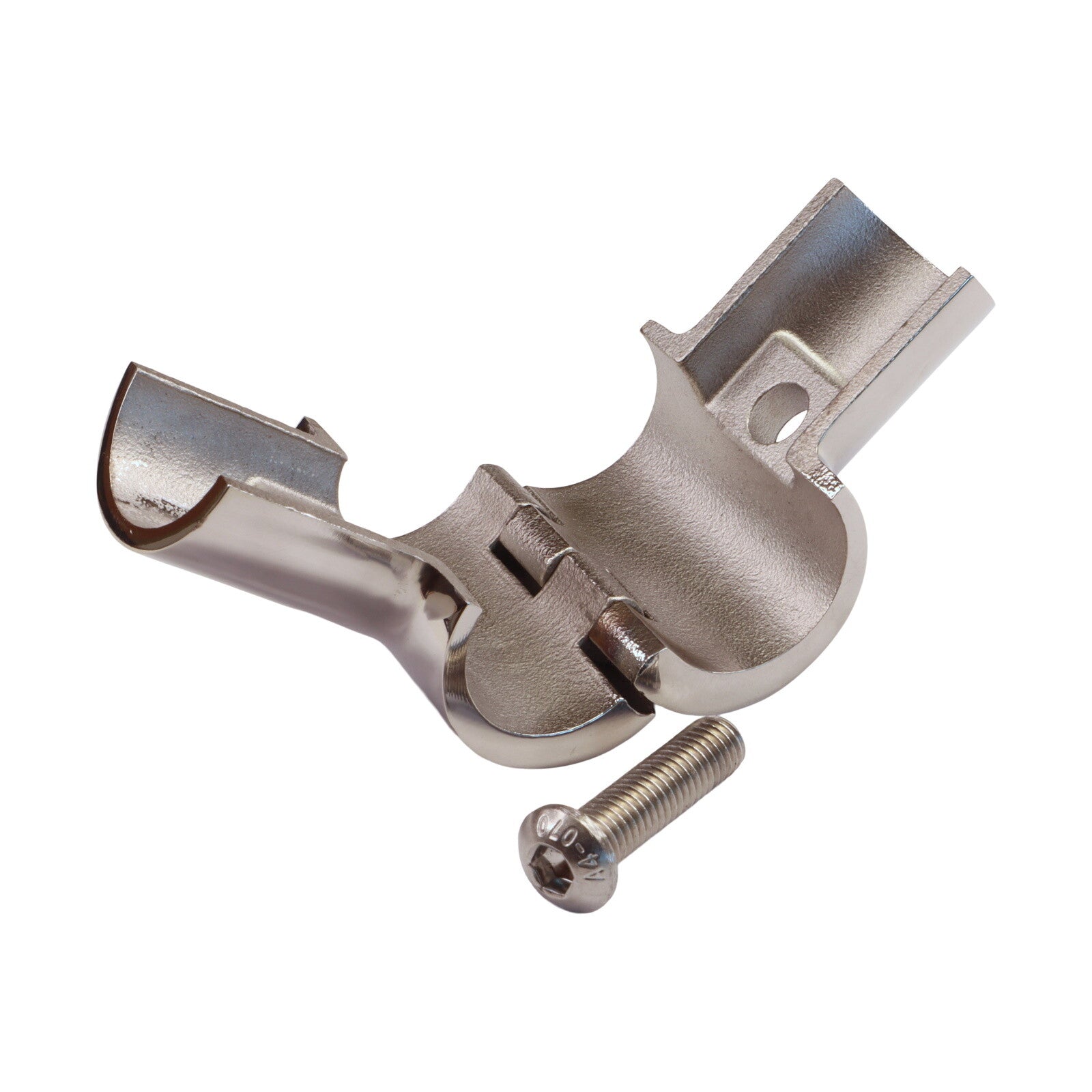

• Hinged in 2 parts to fit over existing tube
• 316 stainless steel
• To suit 22mm / 25mm diameter tubing
• 90-degree angle
• Includes securing grub screws and M8 clamping bolt (also 316 stainless)
